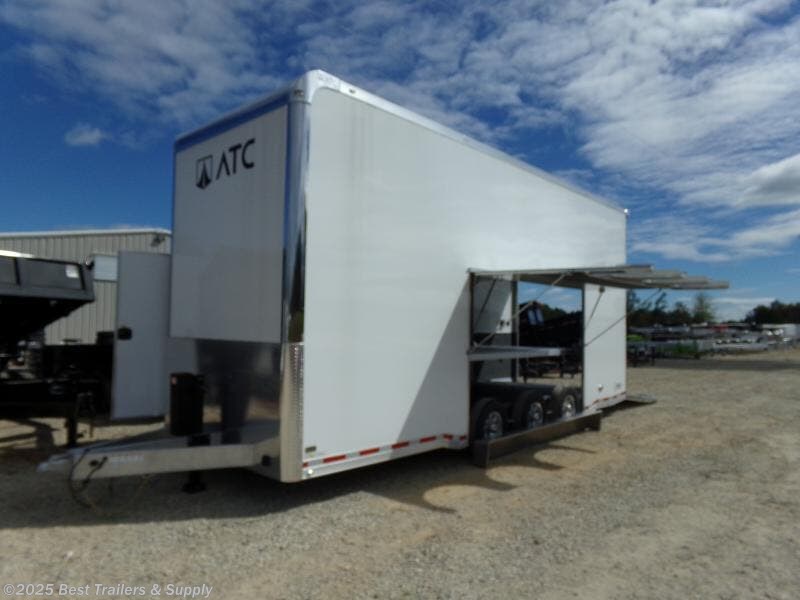

# Built for the Long Haul aluminum stacker trailer
No matter how often you hit the road or what you decide to bring along, the RÅm Stacker will get you there. It's equipped with plenty of space and storage so you can haul multiple vehicles, including cars, ATVs, motorcycles and other toys. Available in several lengths; shorter models ideal for hauling behind an RV.
Axle Rating (3) 6,000 lb
GVWR 19,800 lb
Curb Weight (800/900) 7,625 lb
Payload (800/900) 12,350 / 12,175 lb
Axle Type Torsion
Overall Length 31' 3 1/8"
Overall Width 102"
Overall Height 13' 5"
Interior Length 26' 2"
Interior Width 97 5/8"
Interior Height 135"
Minimum Ground Clearance 9 3/4"
Rear Door Opening Width 90"
Rear Door Opening Height 90"
Tongue Length to Center of Ball 62"
Center of Coupler to Corner Radius 88"
Brakes 6 Wheel Electric
Tire Size 235/80/16 LRE
Hitch Height to Top of Ball 20 15/16"
Hitch Ball Size 2 5/16"
Floor Crossmembers 16" OC
Wall Studs 16" OC
Ceiling Crossmembers 16" OC
standard features
* Frame Features

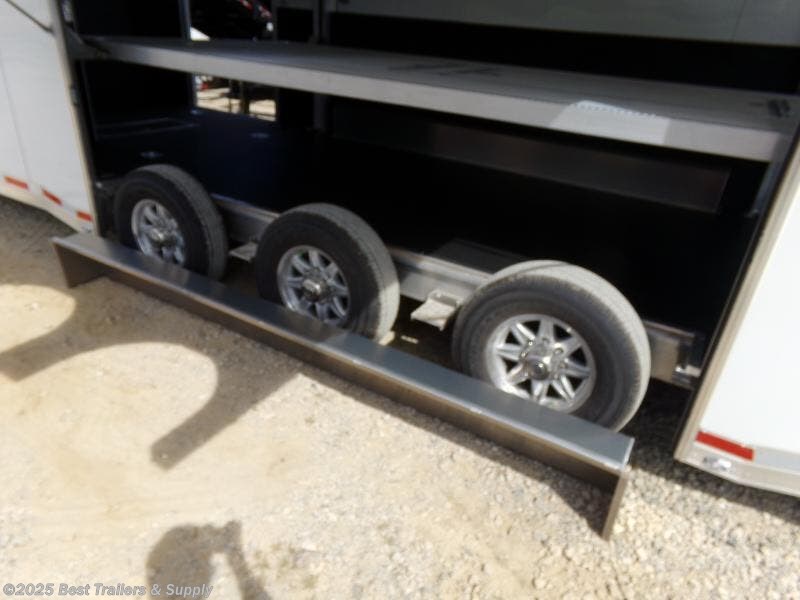

* Spread Axle
* 16" Wheel - 8 Lug Aluminum Rim
* Extended Tongue
* 16" O/C Sidewalls
* 16" O/C Floor - Chassis
* 16" O/C 1" x 2" Roof Members

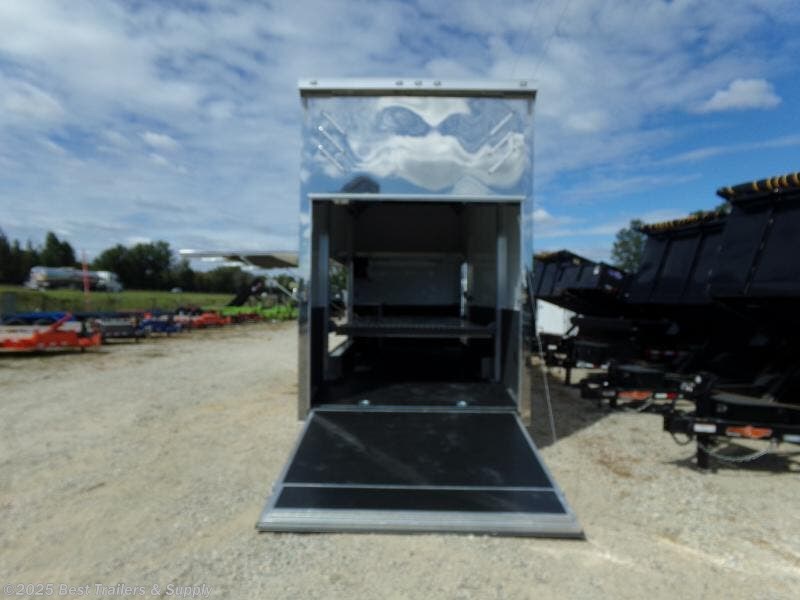

* 6,000 lb Rear Ramp Door
* Transition Flap - 16" Black Coin Flooring
* Stainless Steel Rear Paddle Latches (on Ramp Door)
* Bogey Wheels
* 4 Bolt Coupler - Flat Front Tongue
* Winch Plate
* Interior Height 11' 4"
* Pod Jacks - Stabilizing
* Spare Tire Mount Backer (Attic roadside - front)
* Girard Lateral Arm Prep for 20' Awning
* Hydraulic Tongue Jack
* Exterior Features
* ATP Gravel Guard (48")
* Screwless Exterior (0.050") Metal
* One-Piece Aluminum Roof
* DOT Tape
* Cast Corners - Polished
* Upper & Lower Trim - 4"
* Stainless Steel Front Corner & Top Radius Trim
* Stainless Steel Rear Vertical Corners
* Brushed Fenderettes
* Mid Ship Lights and Turn Signals
* Color Matched - Rear Header
* Wired Rear Camera Prep - Voyager

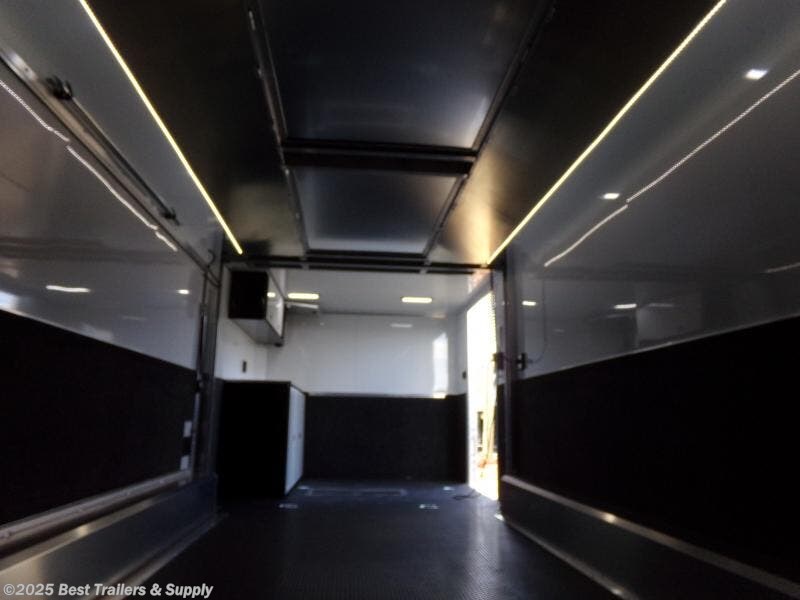

* Interior Features
* Black TPO Floor and Ramp
* Aluminum Walls and Ceiling - (0.030") - White
* 0.125" ATP Attic
* Attic Tiedowns - 4-Rope Rings
* 36" Entry Door - 22' & 24' Model
* 48" Entry Door - 26' Model

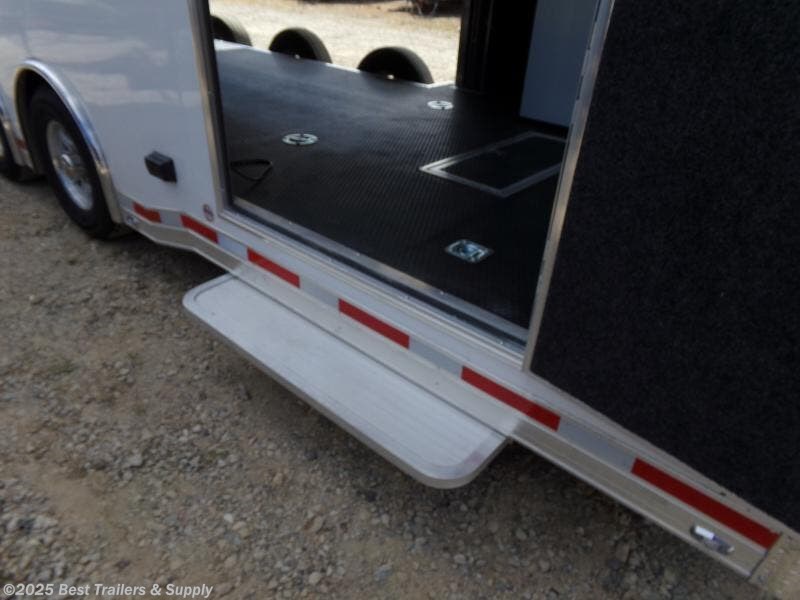

* Slide In/Slide Out Step

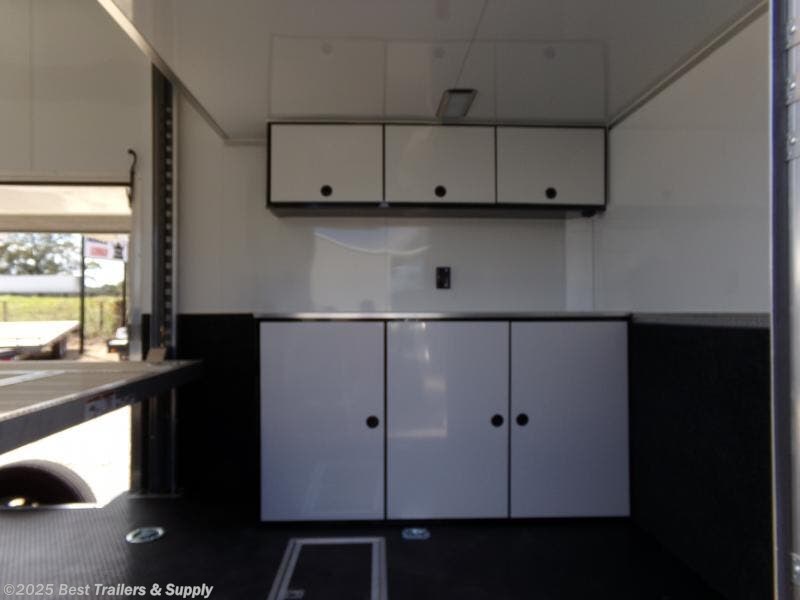

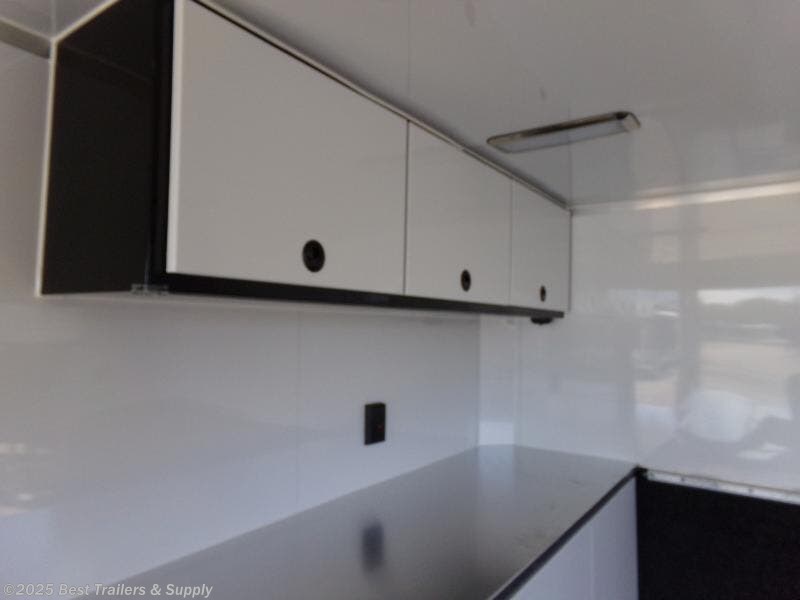

* Upper and Lower Cabinets
* LED Strip Lighting (Under Cab and Lift)
* Premium Escape Door - 72"
* Stacker Cove - Black
* 15 Amp Exterior Motorbase w/ Interior GFCI & (1) Recept
* 55 Amp Convertor/Charger
* (2) 14" LED Light - Under Attic With Switch
* (2) AGM Batteries

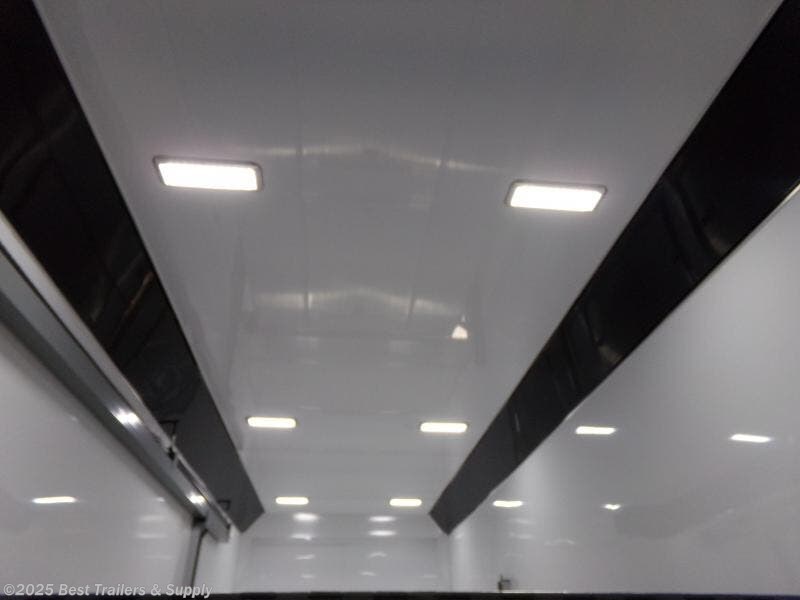

* (6) 14" LED Ceiling Lights - (2) 3-Way Switches

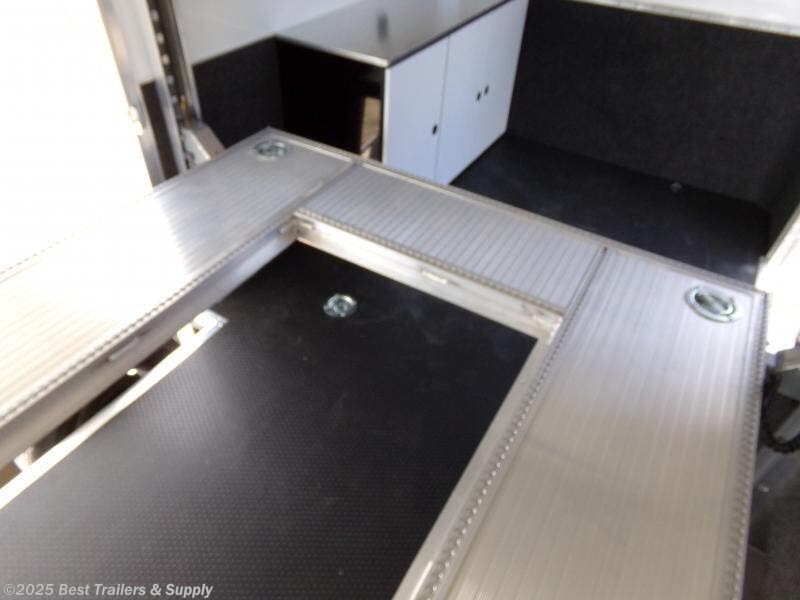

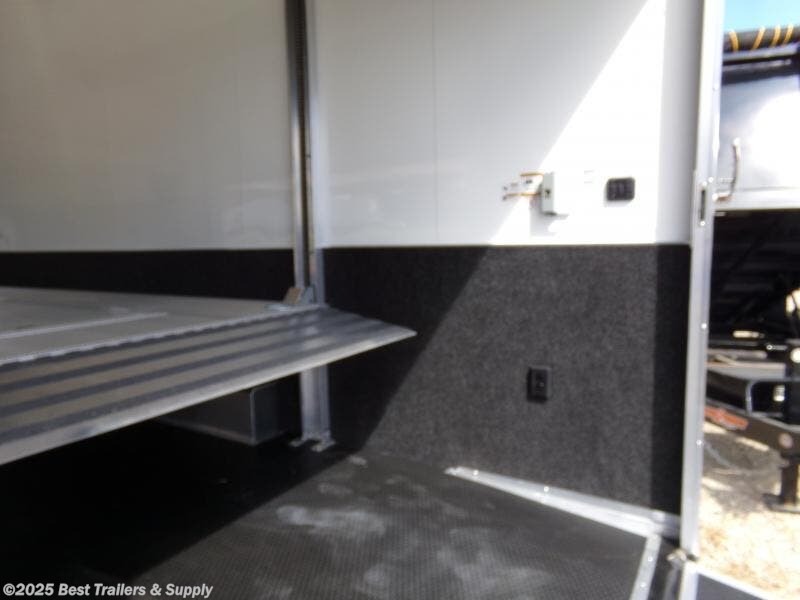

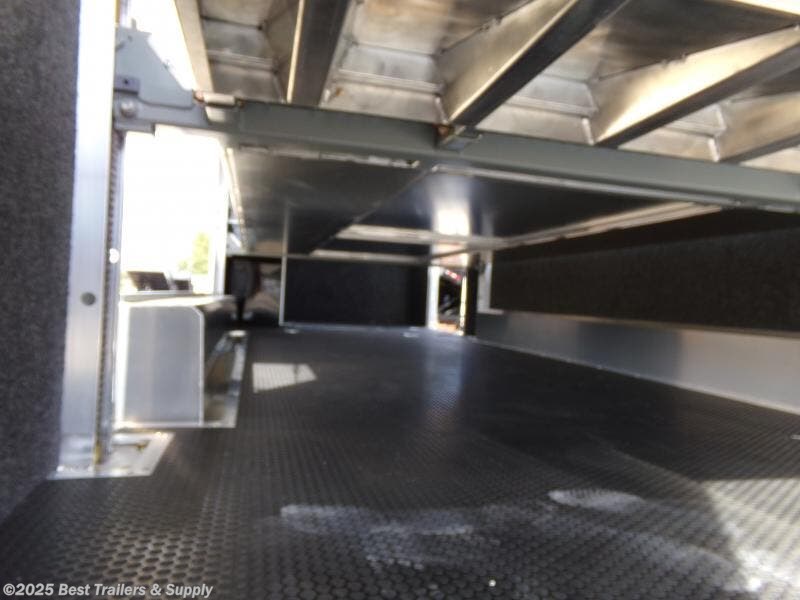

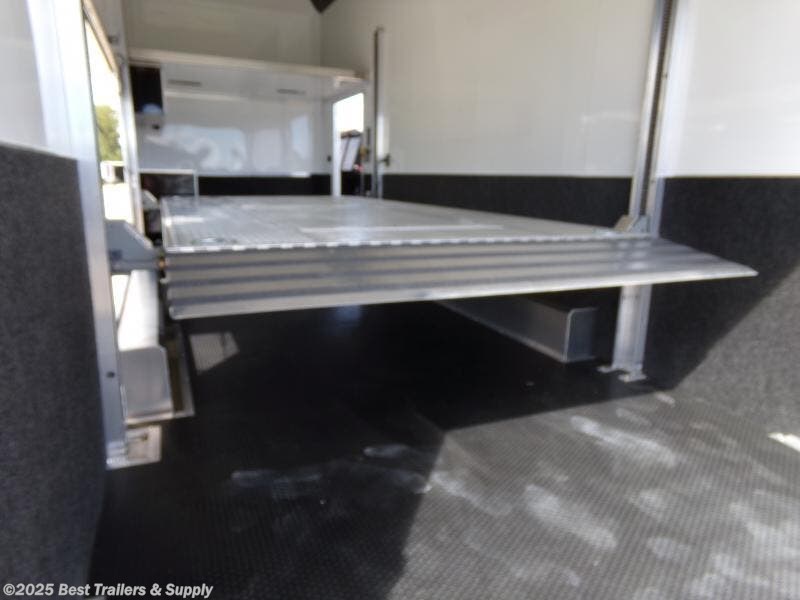

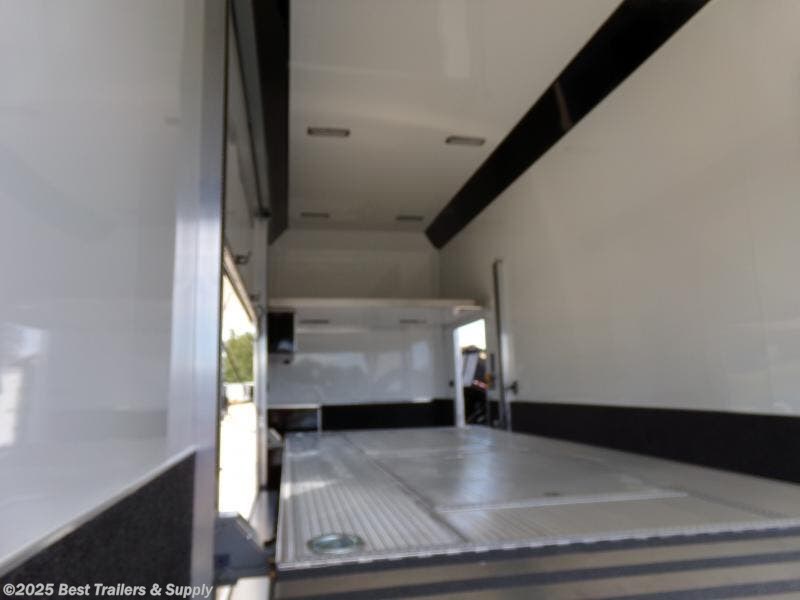

* 14" Stacker Lift With Removable Inserts
* Stacker Lift Control - Wall Mounted Front & Rear
PLUS pkg
* Perimeter Skirting
* Polished Fenderettes
* Lower Trim - 7"
* 50 Amp Breaker Box w/ 60 Amp Converter
* Power Cutoff Switch - Manual
* (3) Interior Outlets - 15 Amp
* (1) Exterior Outlet - 15 Amp
* Wall Airline Track Segment
* Attic Tie Downs - 2 Rows A-Track
* (4) Floor Mounted Swivel D-Rings
* Stainless Steel Rear Header and Spoiler
* (2) Exterior Curbside Scene Lights
* (3) AGM Batteries

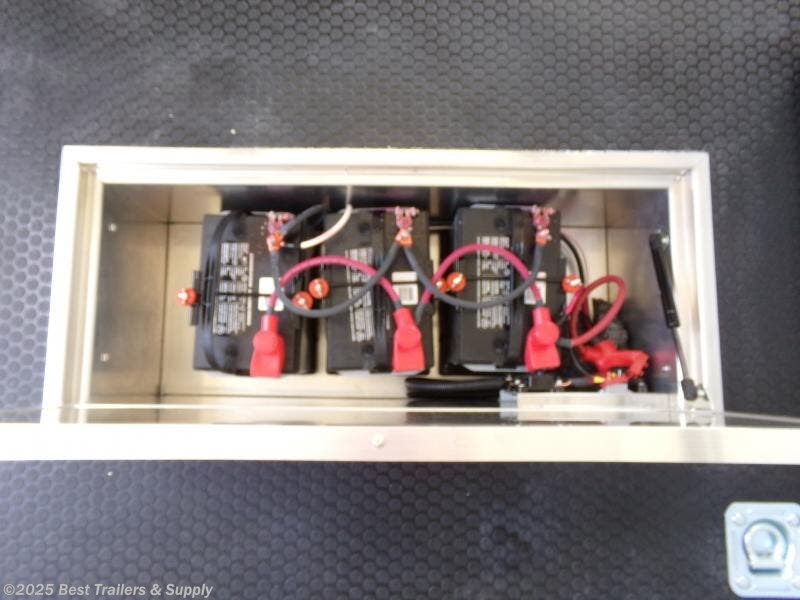

* In-Floor Battery Box - (3) Batteries
* Exterior Docking Lights
* 40" Bedrug - Interior Sidewalls
* High Visibility Rear Light Package: (1) Pair Backup Lights Diagonal - Ramp Door, (2) Pair Tail Lights Diagonal - Ramp Door, (3) Pair Tail Lights Diagonal - Rear Header, (2) Extra Clearance Lights - Lower, (4) Extra Clearance Lights - Upper
