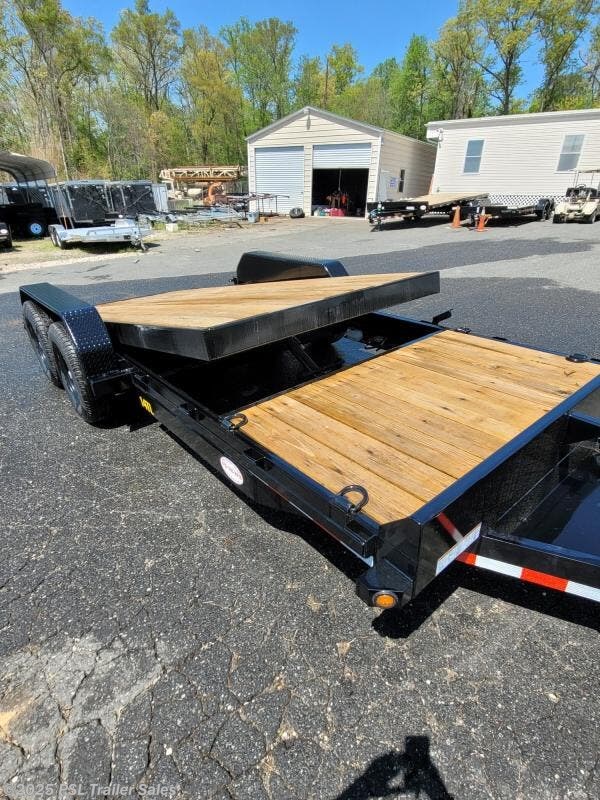

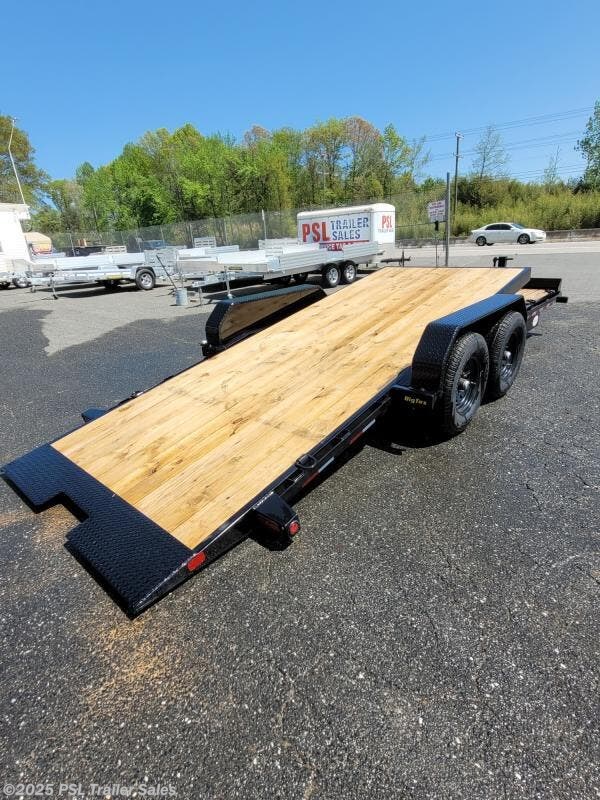

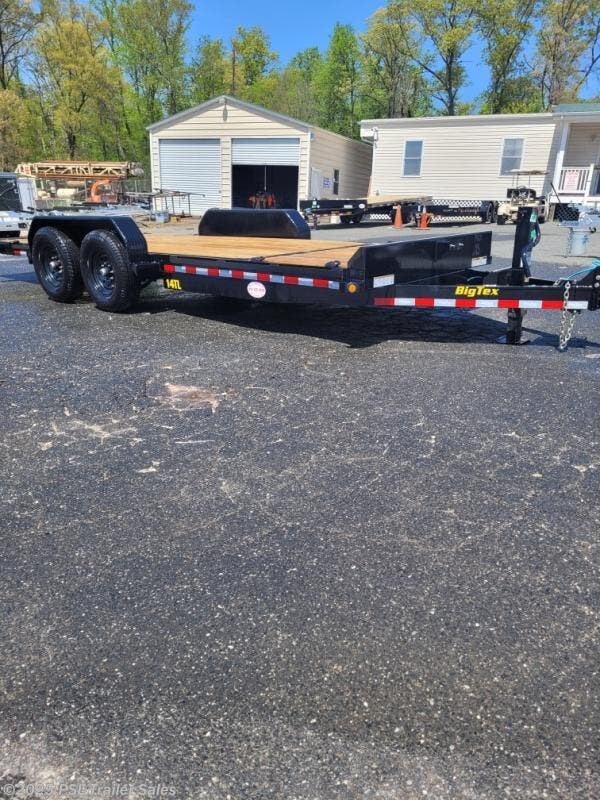

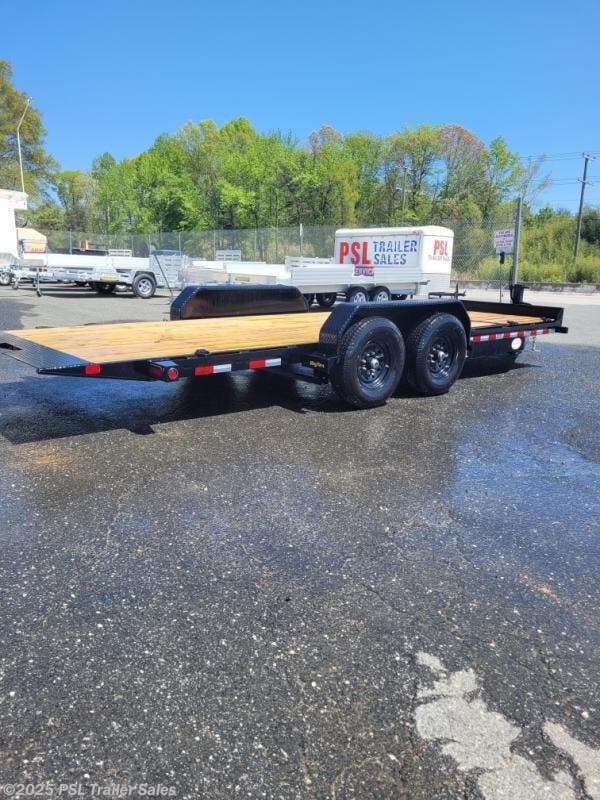

The 14TL is a stationary platform tilt-deck trailer with a 4-foot stationary deck on the front. This unit, similar to the 14FT, is designed to haul medium-duty, low-profile equipment.
Specifications:
AXLE - (2) 7,000#, 4" Drop EZ Lube w/Electric Brakes
JACK - 12,000# Drop Leg Jack-Side Wind
TIRE - ST235/80 R-16 Load Range E
FLOOR - 2" Treated Pine or Douglas Fir*
FRAME - 6" Channel
WHEEL - 16" x 6"; Heavy Black Mod 8 Bolt
FINISH - Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS - L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE - 6" Channel Fold Back/Wrap Tongue
COUPLER - Adjustable 2-5/16" 18,000# Demco EZ Latch
FENDERS - 9" x 72" Double Square Brake Diamond Plate (Removable)
UPRIGHTS - NONE
G.V.W.R. - 14,000#
ELEC. PLUG - 7-Way RV
HITCH TYPE - Bumper Pull
SUSPENSION - Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS - 3" Channel on 16" Centers
FINISH - Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS - 3/8" Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL - 3/16" Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle) - 7,000#
The 14TL also comes equipped with:

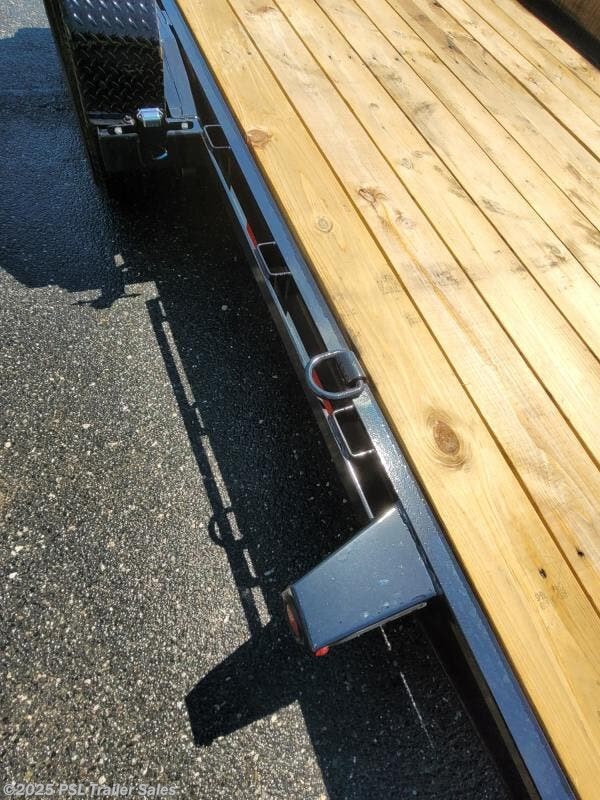

Rubrail and Stake Pockets Along Sides
Adjustable 2-5/16" Demco EZ Latch Coupler

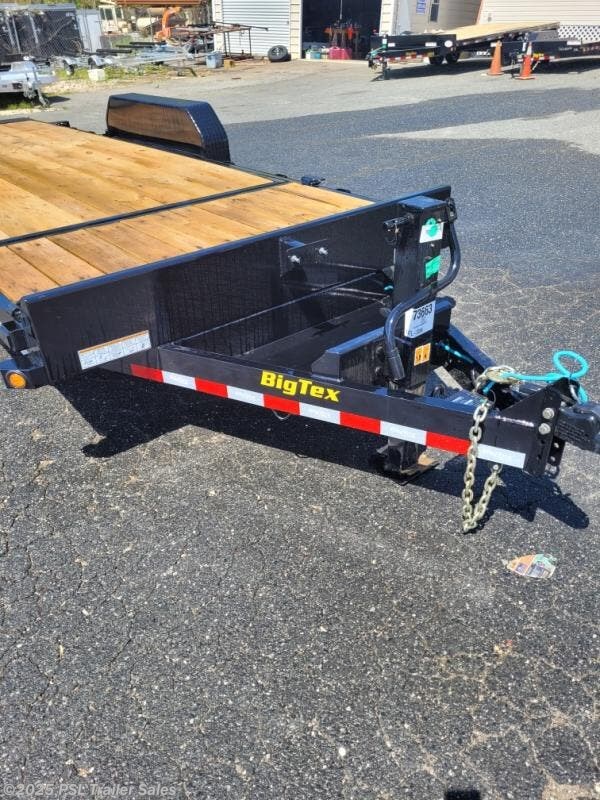

Fold Back/Wrap Tongue w/ Raised Coupler
12,000# Drop Leg Jack- Side Wind Against Bed
Fabricated Stop Rail
EZ Lube Hubs
Dexter Brand Axles
Nev-R-Adjust Electric Brakes on All Hubs
Cambered 4" Drop Axles
Complete Break-A-Way System w/Charger
Zip Breakaway Cable
14 Ga. Double Square Broke Diamond Plate Fenders (Removable)
Single-Side, EZ Pedal Locking Mechanism

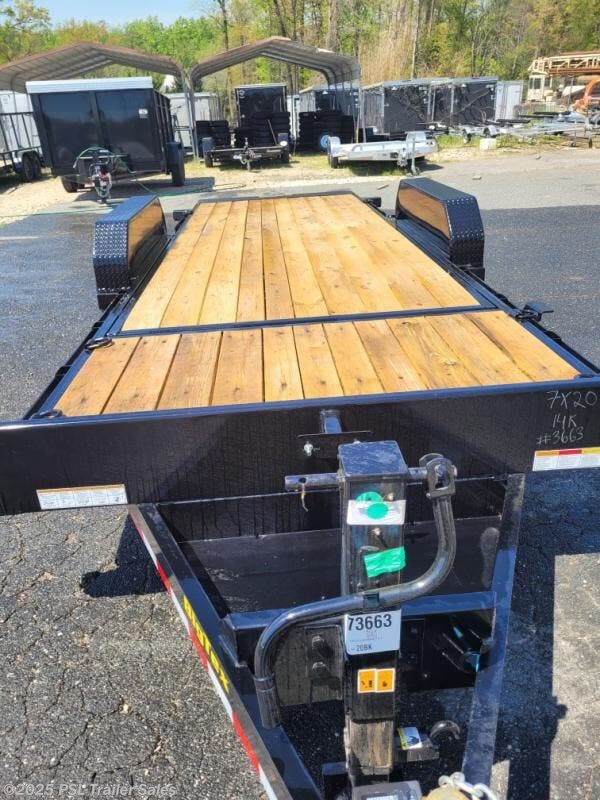

Stationary Front Deck for Added Versatility
Unique Two Piece Main Frame
Full 83" Wide Bed Between Fenders
Tilt Platform is 75" Wide
Hydraulic Dampening Cylinder w/ Valve Control

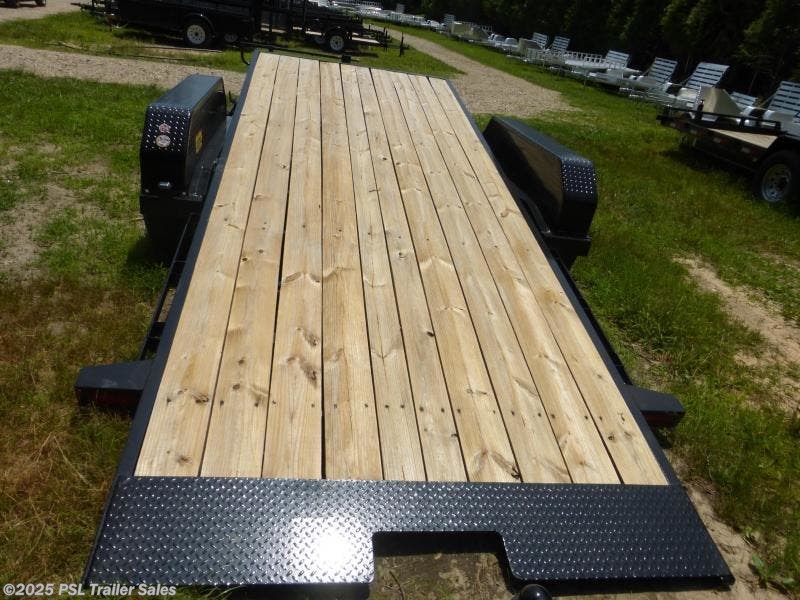

1/4 Diamond Plate Knife Edge on Rear
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed Modular Wiring Harness
Spare Tire Mount (Front)

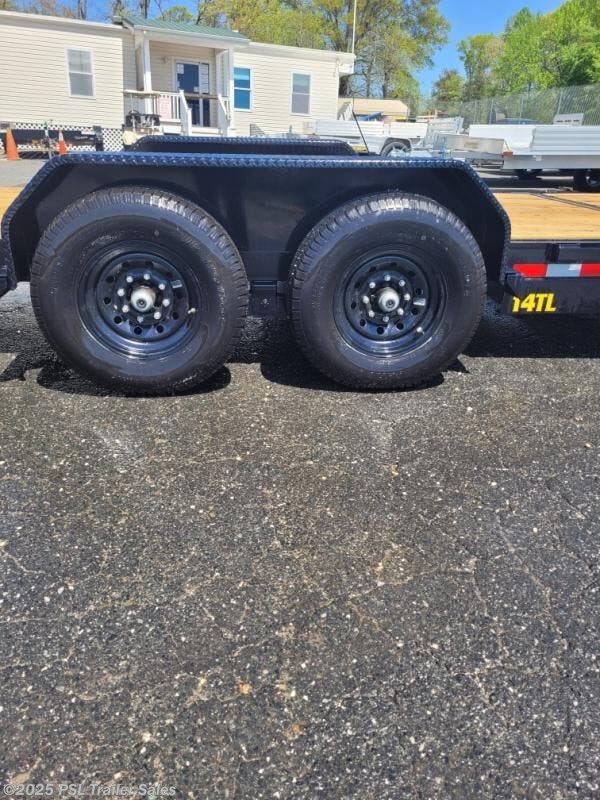

Radial Tires
