The 14LP Low Profile Dump Trailer from Big Tex Trailers offers ultra-low profile deck height to make loading and unloading easier than ever. Designed with the user in mind, this unit has an 8-inch I-beam frame with integrated tongue and shovel/tool storage pan under the bed for easy access.
Specifications:
AXLE - (2) 7,000# Axles w/ EZ Lube Hubs and Elec. Brakes
JACK - 12,000# Side Wind Drop Leg
TIRE - ST235/80 R-16 Load Range E
FLOOR - 10 Gauge Smooth Steel
WHEEL - 16" x 6"; HD Black Mod 8 Bolt
FINISH - Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS - L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE- Integral with Frame (8" I-Beam, 10#)
COUPLER - Adjustable 2-5/16" 18,000# Demco EZ Latch
FENDERS - 9" x 72" 14Ga.Diamond Plate Double Square Broke
G.V.W.R. - 14,000#
ELEC. PLUG - 7-Way RV
HITCH TYPE - Bumper Pull
MAIN FRAME - 8" I-Beam, 10#
SUSPENSION - Multi-Leaf Spring w/Equalizer
BED TOP RAIL - 2" x 2" Square Tubing
FINISH - Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS - 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES - 24" Tall Sides (10 Gauge)
G.A.W.R. (Ea. Axle) - 7,000#
DUMP BODY CROSSMEMBERS - 3" Channel, 16" Centers
THE 14LP ALSO COMES EQUIPPED WITH:
Adjustable 2-5/16" Demco EZ Latch Coupler
8" I-Beam Frame w/Integrated Tongue
28" Deck Height
12,000" Top Wind Drop-Leg Jack
Lockable Pump & Battery Box Mounted in Front of Bed
24" Tall, 10 Gauge Sides w/Fomred Channel Supports
10 Gauge Steel Floors & Sides

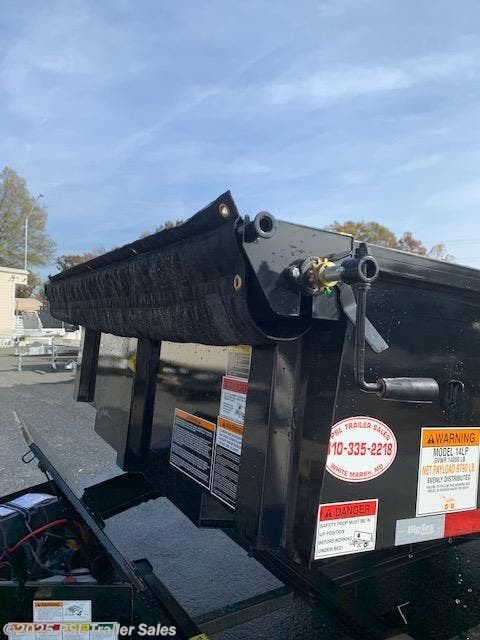

Fully Formed Tarp Shroud on Front
Crank Style Roll Tarp- Standard Equipped
Tarp Rod Included to Secure Tarp on Rear
J-Hooks on sSides & Rear for Tarp Control
Stakepockets Along Sides
Self Contained Electric/Hydraulic Scissor Hoist
Power Up/Power Down Hydraulic Pump
12V Interstate Deep Cycle Battery
110V On-Board Battery Charger (5 Amp)
Dexter Brand Axles
Cambered Axles w/EZ Lube Hubs
Nev-R-Adjust Electric Brakes on All Hubs
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed, Modular Wiring Harness
Complete Brake Away System
Zip Breakaway Cable
Diamond Plate Fenders
2" Square Tubing Top Rail on Dump Bed
Combo Gate (Barn Doors & Spreader Gate)
Rear Stabilizer Stands
(4) 1/2" D-Rings Inside Bed to Secure Equipment
Spare Tire Mount
Radial Tires
We have over 350 trailers in stock. Our website shows all the models we stock. Stop in and let us show you around. Or call us at 410-335-2218.
Picture posted with ad is model but may not be representative of actual colors/options. Pricing, specs, and availability are subject to change.
